Image: CRC-32B Hash Algorithm — Visual Overview
Published: January 9, 2026 at 9:56:56 PM UTC
Last updated: January 9, 2026 at 9:57:15 PM UTC
Clear, easy-to-understand visualization of the CRC-32B hash algorithm, illustrating data blocks, shift register processing, XOR logic, and the final checksum result.
Available versions of this image
The image files available for download below are less compressed and higher resolution - and as a result of that, higher quality - than the images embedded in articles and pages on this website, which are more optimized for file size in order to reduce bandwidth consumption.
Regular size (1,536 x 1,024)
Large size (3,072 x 2,048)
Very large size (4,608 x 3,072)
Extra large size (6,144 x 4,096)
Comically large size (1,048,576 x 699,051)
- Still uploading... ;-)
Image description

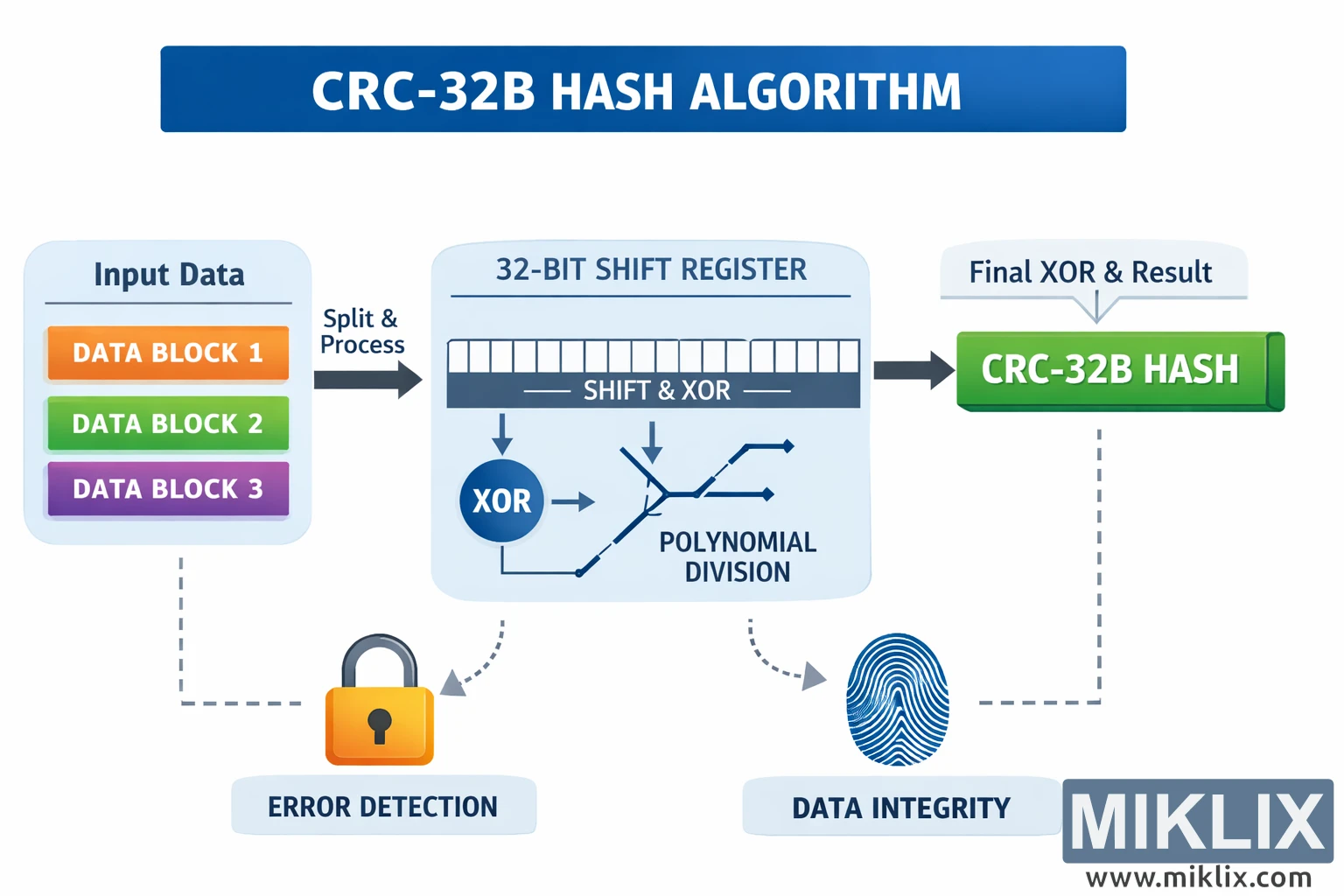

The image is a wide, landscape-oriented infographic titled "CRC-32B Hash Algorithm" displayed in a blue banner across the top. The overall layout reads from left to right, guiding the viewer through the main stages of the algorithm using simple shapes, arrows, and color-coded sections. On the left side, a rounded panel labeled "Input Data" contains three stacked blocks in different colors, labeled Data Block 1, Data Block 2, and Data Block 3. These blocks represent generic chunks of data being processed, without showing any real values. An arrow labeled "Split & Process" points from this input panel toward the center of the diagram.
In the middle, a large light-blue panel is titled "32-Bit Shift Register." Inside it, a horizontal row of small empty boxes symbolizes a 32-bit register. Beneath this row is the label "Shift & XOR," indicating the repeated operations that happen as data bits move through the register. Below that, a circular icon labeled "XOR" is connected by arrows to a branching line graphic labeled "Polynomial Division." This abstract line drawing suggests the feedback logic used during CRC calculation without including any specific polynomial constants or implementation details.
From the central panel, a bold arrow leads to the right side of the image. At the top right is a small callout reading "Final XOR & Result," pointing downward to a green rounded rectangle labeled "CRC-32B Hash." This element represents the final checksum value produced by the process.
At the bottom of the infographic, two conceptual icons reinforce the purpose of the algorithm. Below the input side is a small lock icon with the caption "Error Detection," connected by a dotted line to the main processing area, emphasizing that CRC is used to detect accidental data corruption. On the lower right, a fingerprint icon with the caption "Data Integrity" is similarly connected to the final hash, illustrating the idea of verifying that data has not changed.
The entire design uses soft gradients, rounded corners, and clear typography, with plenty of whitespace so the flow is easy to follow. The diagram avoids concrete bit patterns or exact mathematical parameters, focusing instead on an intuitive, high-level explanation of how data flows through shifting and XOR operations to produce a CRC-32B checksum.
The image is related to: CRC-32B Hash Code Calculator
